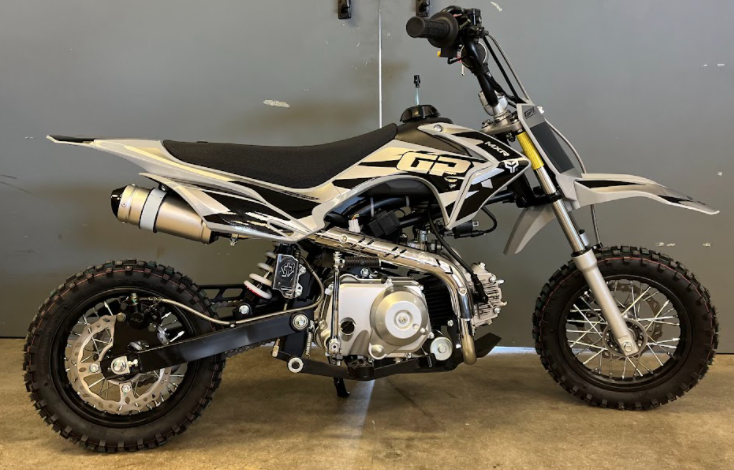

2023 Pitster Pro MXR 90
STANDARD FEATURES
88cc 4-Stroke with Air Cooling
Mini Moto SX MM10 Stock/Mod Legal
Electric & Kick Start
4-Speed Transmission
Preload Adjustable Rear Shock
Front and Rear Disc Brakes
Pro Style Swingarm
Wide Pegs
Kick Stand
Skid Plate
DIMENSIONS
Wheelbase: 37 in.
Seat Height: 23 in.
Curb Weight: 110 lb.
Ground Clearance: 7 in.
Fuel Capacity: 3 L
ENGINE
Engine: 4-Stroke 88cc
Clutch: 5 Plate Wet Clutch
Cooling: Air Cooled
Gearing: 420/ 14T x 37T
Bore and Stroke: 47mm x 49.5mm
Ignition: Stator/ CDI with Lighting Coil
Starter: Electric & Kick
Transmission: 4 Speed Semi-Auto Clutch
CHASSIS
Front Tire: 2.50 x 10 in.
Front Wheel: 1.40 x 10 in.
Rear Tire: 2.50 x 10 in.
Rear Wheel: 1.40 x 10 in.
Front Brake: Hydraulic Disk
Rear Brake: Hydraulic Disk
Front Suspension: Conventional Telescoping Oil Fork
Rear Suspension: Type A Swing Arm, Oil Shock w/ Adjustable Preload
Swingarm: Chromo A-frame
Subframe: Fixed, Chromoly
Frame: Chromoly
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
