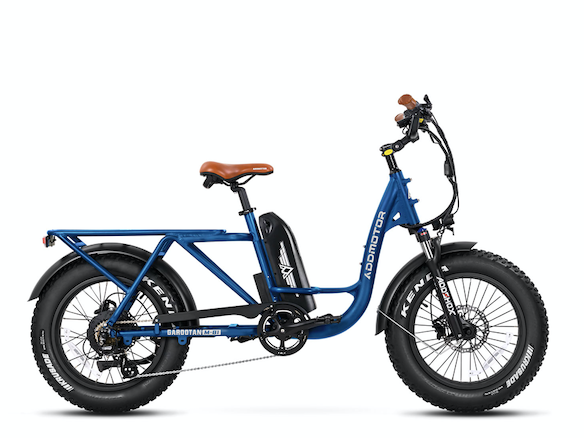

2023 Addmotor Garootan M-81
STANDARD FEATURES
EB 2.0 750W Rear Gear Motor
105+ Mile Long Riding Range
20AH Samsung Battery
Multi Function LCD Display
4” Reflective Strip Durable Tires
Adjustable U Style Curved Handlebar
EB 2.0 Headlight and Rear Light
DIMENSIONS
Total Length: 75”
Total Width: 29”
Reach: 18”
Wheelbase: 51”
Seat Tube: 30”
Standover Height: 12”
Min Seat Height: 33”
Max Seat Height: 42”
Rear Rack Width: 6.5”
Rear Rack Length: 25.8”
Lowest Seat to Lowest Pedal: 28.3”
Rider Height: 5’4”- 5’9”
Payload Capacity: 350lbs
Seat Post Diameter: 31.8mm
MOTOR
Motor: Addmotor 48V*750W (907Peak Watts) Rear Brushless Gear Motor
Controller: Addmotor EB 2.0 Controller, Upgraded to A Chip Type
Charger Port: 5 Pins with Auto Magnetic Suction Customized Snap Lock
Battery: Samsung 20AH (21700-5000mah), 8-10 Hours Fully Charged Time, Rated For 1000-1500 Cycles
Throttle: Variable Speed Control - ½ Twist Throttle With Power-Cut Switch
Charger: 48V*2.0AH 5 Pins US Standard DC Charger, 7-Shaped Head Design
Range: Up to 105+ Miles Per Charge with PAS 1 (Estimate Miles)
Pedal Assist: Intelligent 7 Levels Pedal Assist, Speed Sensor (7 PAS)
Wiring: Water-Resistant Connectors and Wiring Harness
Shifter: SHIMANO Right Thumb Shifter 7-Speed, SIS Index System
CHASSIS
Brake: EB 2.0 Hydraulic Disc Brake, Small Friction Generated
Brake Disc: 180mm
Tires: Kenda GIGAS Puncture-Resistant 20” x 4.0” Durable Tires
Rims: Aluminum Double Wall
Spokes: 12-Gauge High-Strength Spokes
Front Wheel: Quick Release
Front Fork: Oil Spring Fork with 100mm of Travel
Derailleur: SHIMANO 7 Speed Pedal Assist (7 PAS Per Charge)
Fenders: Aluminum, Front Fender and Rear Fender Included
Frame: EB 2.0 Durable 6061 Aluminum Alloy Polygon Frame Design
OTHER
Display: Addmotor EB 2.0 Multiple Function LCD Display (Increase to 7 PAS)
Grips: Durable Ergonomic Design
Saddle: Addmotor Exclusive Well Padded Saddle with Back Handle
Horn: Included Electric Horn, 108 Maximum Decibel, 492 Foot Away Transmitted
Rear Rack: Included 55lbs(25KG) Durable Integrated Rear Rack
Seat Post: Aluminum, Thicken 31.8mm x 3.0
Handlebar: Adjustable U Style Curved Handlebar, Adjust The Angle and Height
Headlight: Supplies a Brightness of 40 Lumens, a Visible Distance of 200m, and a 180 Degrees Side View
Taillight: UL Certificate, With Driving Light, Left and Right Turn Signals, Danger Light, Flashlight, Brake Light
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
