2024 Addmotor Arisetan M-360
STANDARD FEATURES
48V 750W Front Mounted Motor
48V 20AH Samsung Cell Battery
Up to 85 Mile Riding Range
4” Kenda Fat Tires
Tektro 180mm Disc Brakes
5 Inch LCD Display
Integrated Headlight and Taillight
DIMENSIONS
Length: 80.7”
Wheelbase: 55.5”
Handlebar Height: 45.2"
Seat Height: 28.3”
Stand Over: 26.7”
Bottom Bracket Height: 13.3”
Rear Basket: 21.6" x 16.5" x 10.2"
Rear Wheelbase: 23.6"
Handlebar Length: 27.2"
Reach: 29.5”
Rear Wheel Width: Outer 31.29”; Inner 23.6"
Bike Weight: 45KG/99.21 lbs
MOTOR
Motor: Bafang 48V*750W Front Brushless Hub Motor,
90Nm Motor Torque
Controller: Addmotor 25A Controller
Charger: 48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins with Auto Magnetic Suction
Battery: Samsung 48V*20Ah Cells Battery, Charging Time 10 Hours and Rated for 1,000 Charge Cycles
Throttle: Variable Speed Control - ½ Twist Throttle
Wiring: Water-Resistant Connectors and Wiring Harness
Pedal Assist: Upgraded 7 Level Pedal Assist, Torque Sensor
Chain: KMC Rust Resistant Chain
Chain Puller: Shimano 7 Speeds ALTUS M310
CHASSIS
Tires: Kenda 20” x 4.0” Fat Tires
Rotors: MD300 180mm Front/Shanfeng*2 Pics 180mm Rear
Brake Lever: Tektro EL555-RT/EL550-RS
Front Fork: Oil Spring Fork with 25mm of Travel
Fender: Front and Rear Fender
Frame: 7A19 Aluminum Alloy Frame
OTHER

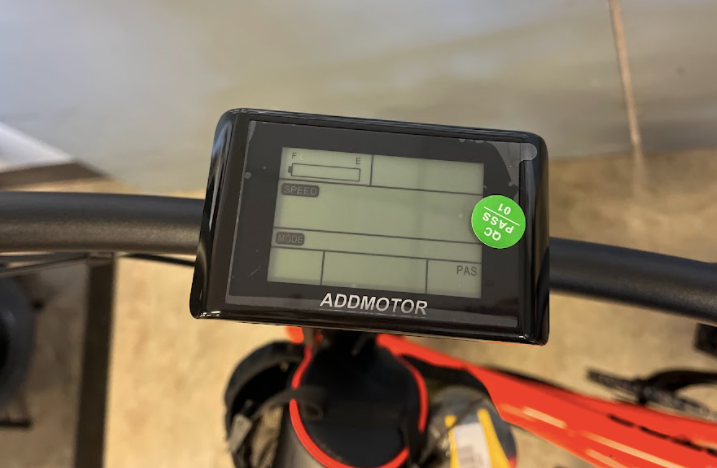

Display: Addmotor 5 Inch Display
Headlight: Powered By Main Battery and Controlled By Display
Taillight: Powered by Main Battery and Controlled by Display, with Turning Signal
Basket: Metal Large Capacity Rear Basket with Waterproof Bag
Horn: Sensitive Front Horn
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
