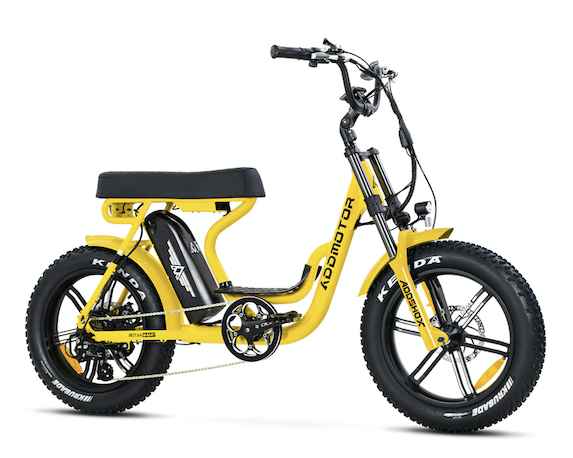

2024 Addmotor M-66 R7
STANDARD FEATURES
48V*750W Rear Mounted Motor
105+ Miles Long Riding Range
20AH Samsung Battery
4” Durable Fat Tires
Multi Function LCD Display
LED Headlight
Banana Seat For Two
DIMENSIONS
Length: 72”
Wheelbase: 48”
Mini/Maxi Handlebar Height: 42.5”/48”
Bottom Bracket Height: 12.4”
Standover Height: 17”
Seat Height: 32.5”
Saddle Size: 23.5” x 8.5”
Reach: 13.5”
Handlebar Width: 30”
Lowest Seat to Lowest Pedal: 27.2”
Bike Weight(Excluding Battery): 74lbs
MOTOR
Motor: Bafang 48V*750W Rear Brushless Gear Motor
Range: Up to 105 Miles Per Charge with PAS 1 (Estimate Miles)
Controller: Addmotor EB 2.0 25A Controller, Upgraded to A Chip Type
Charger: 48V*2.0Ah 5 Pins US Standard DC Charger, 7-Shaped Head Design
Charger Port: 5 Pis With Auto Magnetic Suction Customized Snap Lock
Battery: Samsung 20AH (21700-5000mah), 8-10 Hours Fully Charged Time
Throttle: Variable Speed Control - ½ Twist Throttle With Power-Cut Switch
Wiring: Water-Resistant Connectors and Wiring Harness
Shifter: SHIMANO Right Thumb Shifter 7-Speed, SIS Index System
Pedal Assist: Intelligent 7 Levels Pedal Assist, Speed Sensor (7 PAS)
CHASSIS
Tires: Kenda GIGAS Puncture-Resistant 20” x 4” Durable Tires
Rims: Cast: Alloy, Double Walled
Spokes: 12-Guage High-Strength Spokes
Front Wheel: Quick Release
Brake: Tektro Aries Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edge, Motor Inhibitors, and Bell on Left
Brake DIsc: 180mm
Brake Rotors: Tektro Aries Mechanical DIsc with 180mm Rotors, Tektro Four-Finger Levers with Rubberized Edge and Motor Inhibitors
Front Fork: Addshox Spring Suspension Fork, Triple Clamp, 32.5mm Steel Stachions, 80mm Travel, Preload Adjust, Boost 135mm Hub Spacing, 9mm Skewer with Bolts
Derailleur: Shimano 7 Speeds / ALTUS M310
Cranks: Ounce, Alloy, 170mm Length, 42 Tooth Chainring with Double-Sided Alloy Chain Guard
Stem: Promax, Alloy, Adjustable Angle (-10 to 100 Degrees), Alloy, 110mm Length, Four 10mm Spacers
Gearing: 7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 Cassette 14-28 Tooth
Pedals: Wellgo Alloy Platform with Pins
Fenders: Aluminum, Front Fender and Rear Fender Included
Frame: 6061 Aluminum Alloy Step-Thru Frame
OTHER
Display: Addmotor EB 2.0 Multiple Function LCD Display (Increase to 7 PAS)
Headlight: Supplies a Brightness of 40 Lumens, a Visible Distance of 200m, and a 180 Degrees Side View
Taillight: UL Certificate, With Driving Light, Left and Right Turn Signals, Danger Light, Flashlight, Brake Light
Grips: Ergonomic, Stitched Faux Leather, Black
Handlebar: Adjustable U Style Curved Handlebar, Adjust The Angle and Height
Headset: Neco, Threadless Internal Cups, straight 1-⅛”
Saddle: Banana Seat (23” x 8.5”)’ Faux Leather, Black
Horn: Included Electric Horn, 108 Maximum Decibel, 492 Foot Away Transmitted
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
