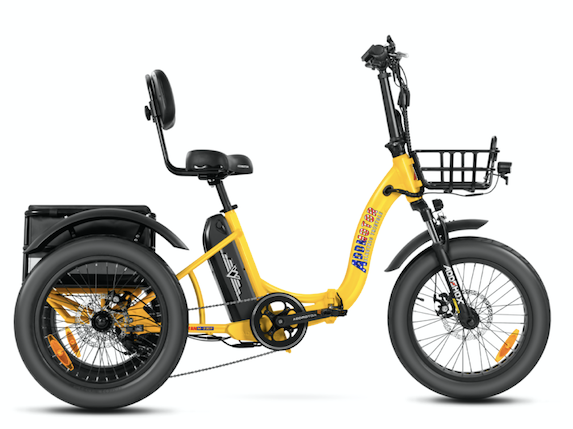

2024 Addmotor Triketan M-330F
STANDARD FEATURES
48V*750W Rear-Mounted Motor
85+ Miles Per Charge
Rear Speed Differential
3rd Gen Mid-axis Torque Sensing
Reinforced Trailer Tube
Folding Frame
DIMENSIONS
Total Length: 73"
Total Width: 30.5"
Wheelbase: 50"
Minimum Handlebar Height: 46"
Maximum Handlebar Height: 50.8"
Handlebar Length: 23.6"
Minimum Seat Height: 28"
Maximum Seat Height: 35"
Seat Tube: 18"
Reach: 17"
Bottom Bracket Height: 9.5"
Rear Basket: 21.5"L x 17" W x 10"H
Bike Weight: 112LBS/51KG
MOTOR
Motor: Addmotor 48V*750W Rear-Mounted Motor, 80 NM Torque
Battery: Samsung 48V*20Ah Cells Battery, Charging Time 9-10 Hours and Rated For 1000-1500 Charge Cycles
Charger: 48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins with Auto Magnetic Suction
Controller: Addmotor 25A Controller
Throttle: Variable Speed Control - ½ Twist Throttle
Wiring: Water-Resistant Connectors and Wiring Harness
Pedal Assist: 7 Level Pedal Assist, Torque Sensor
CHASSIS
Tires: Kenda 20” x 3.0” , 30 TPI Fat Tires
Brake Lever: Tektro EL555-RT/EL550-RS
Rotors: 180mm F / 2*180mm Rear
Front Fork: MOZO 50mm of Travel
Chain: KMC Rust Resistant Chain
Chain Puller: Shimano 7 Speed / ALTUS M310
Frame: 7A19 Aluminum Alloy Frame
OTHER
Display: Addmotor 5-Inch LCD Display
Headlight: Powered By Main Battery and Controlled By the uneven buttons
Taillight: Powered By Main Battery and Controlled By Display with Brake Light Function
Basket: Front and Rear Basket Waterproof Bag
Seat Post: Quick Release 30cm
Handlebar: Black Aluminum Foldable Handlebar
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
