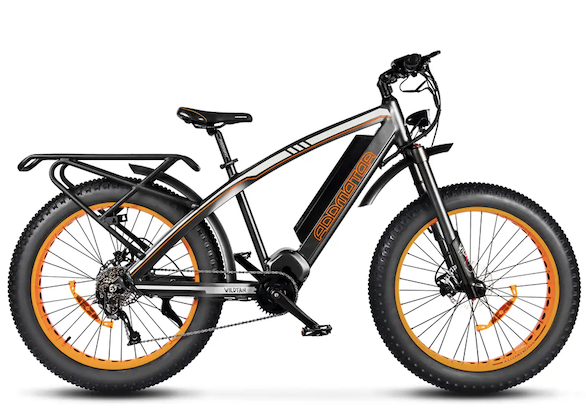

2024 Addmotor Wildtan M-5600
STANDARD FEATURES
1000W Bafang Mid-Drive Motor
Long-Lasting 17.5Ah Samsung Battery
Hydraulic Disc Brake With Cutoff Sensor
4.5” Wide Fat Tires
LCD Smart Color Display
Front and Rear Lights
DIMENSIONS
Total Length: 78.5”
Wheelbase: 49.5”
Min Seat Height: 34”
Max Seat Height: 42.5”
Seat Tube: 19”
Standover Height: 29.5”
Handlebar Height: 44”
Handlebar Width: 28”
Reach: 16”
Lowest Seat to Lowest Pedal: 28.3”
MOTOR
Motor: 1000W Bafang BBSHD Mid Drive Motor With 160 Nm of Torque
Controller: Integrated Bafang 30A Controller
Charger: 48V, 2.5 Amp Smart Charger
Battery: 48V*17.5Ah(840Wh) With Lithium Samsung 35GA Cells, Rated for 800 Charge Cycles
Throttle: Right Hand HAlf Twist Throttle
Integrated Wiring: Water-Resistant Connectors and Wiring Harness
Pedal Assist: Intelligent 5-Level Pedal Assist with an Integrated Speed Sensor
CHASSIS
Tires: Kenda Juggernaut Pro 26” x 4.5” Fat Tires
Rims: 26” Aluminum Double Wall, 36H, With Front Thru-axle Hub
Spokes: 12-Guage Stainless Steel
Brakes: Tektro Hydraulic Disc Brake HD-E500 With Motor Cuttoff Sensor
Brake Rotors: Tektro 180mm Front and Rear
Derailleur: SHIMANO ALIVIO 9-Speed
Front Fork: Air Inverted Fork with 120mm of Travel, Rebound / Air Pressure Adjustable / Manual Lock-Out Adjustments
Crankset: 36T Chainwheel, 170mm Bafang Forged Alloy
Freewheel: Exclusive Addmotor Stainless Steel 9-Speed Freewheel, 11-32T
Stem: Promax Aluminum 100mm + Adjustable Angle
Pedal: Wellgo Aluminum With Reflectors, Standard 9/16” x 20 TPI Threading
Chain: KMC X9 Rust Resistant Chain
Frame: 6061 Aluminum Alloy Frame
OTHER
Display: Addmotor 5-Inch LCD Smart Color Display with Bluetooth
Lights: Front- Electric Headlight TRENDO by Spanninga Rear- Battery Taillight by Spanninga
Saddle: Exclusive Addmotor Well Padded Saddle
Handlebar: Promax Aluminum, 700mm Wide, 5 Degree Angle Sweep Back
Seat Post: Promax Aluminum 320mm x 28.6mm
Seatpost Clamp: Promax Quick Release
Grips: Durable Imitation Leather Ergonomic Grips
Kickstand: Side-Mounted, Adjustable Lean Angle
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
