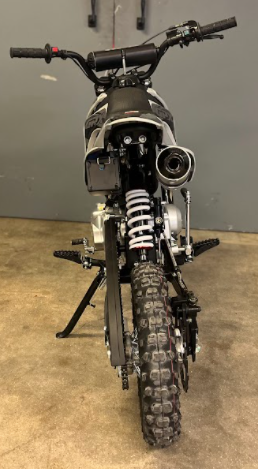

2023 Pitster Pro MXR 110
STANDARD FEATURES
GPX Moto 110cc Power Plant
22mm Carburetor
HD Suspension
Semi Automatic Four Speed
New Floating Caliper Rear Brake
Oversized Rotors
1/4 Turn Throttle
DIMENSIONS
Wheelbase: 44 Inches
Seat Height: 28 Inches
Curb Weight: 144lbs
Ground Clearance: 8.5
Fuel Capacity: 1.1 Gallons
ENGINE
Engine: Four Stroke 110cc SOHC
Carburetor: 22mm
Clutch: 5 Plate Wet Clutch
Cooling: Air Cooled
Gearing: 420/16T X 39T
Lubrication: Oil Bath
Bore: 52.4
Stroke: 49.5
Ignition: Stator/ CDI E-Start
Compression Ratio: 9:5:1
Starter: Kick
Transmission: Four Speed Manual Clutch
CHASSIS
Front Tire: 2.50 x 12 (60-100/10)
Front Wheel: 1.40 x 12
Rear Tire: 3.00 x 10 (80-100/10)
Rear Wheel: 1.85 x 12
Front Brake: 190mm W-Style Rotor w/ Floating Caliper
Rear Brake: 190mm W-Style Rotor w/ Floating Caliper
Front Suspension: GPX Hydraulic Telescopic Oil Fork
Swingarm: Pro Style
Travel: 5 Inches Front and Rear
Frame: Chromoly
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
