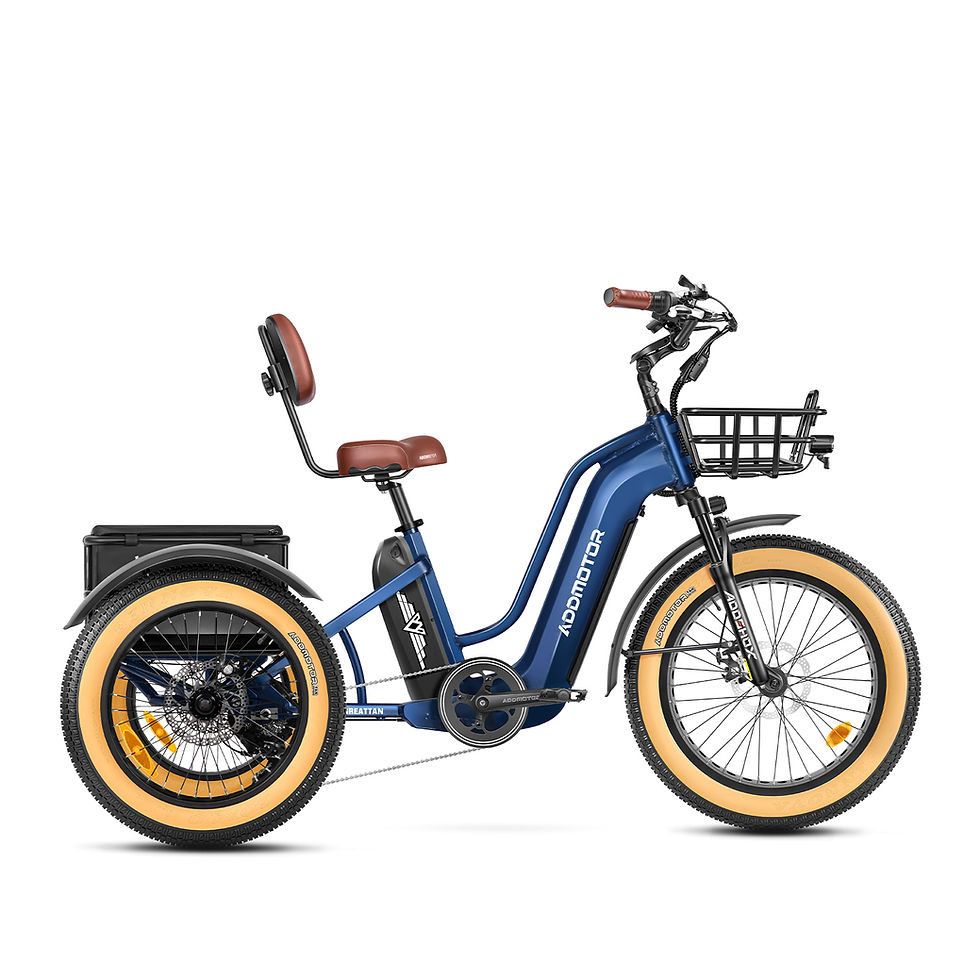

2024 Addmotor Greattan

STANDARD FEATURES
High-Torque 750W Rear-Mounted Motor
Smooth Cornering w/ Differential
Triple Mechanical Brakes
Oil Spring Fork Suspension
Well-Padded Saddle w/ Adjustable Backrest
LCD Display
DIMENSIONS
Total Length 75.79"
Total Width 32.68"
Wheelbase 51.18"
Handlebar Length 28.54"
Minimum Handlebar Height 46.06"
Maximum Handlebar Height 48.82"
Minimum Seat Height 31.5"
Maximum Seat Height 38.98"
Seat Tube 17.91"
Reach 16.14"
Standover Height  17.32"
Rear Basket  20.5" x 16" x 9.5"
Bike Weight 119LBS/54KG (Single Battery)
MOTOR
Motor: 48*750W Rear-Mounted Brushless Motor: 90Nm Torque; 1400 Watts Peak Power
Max Range: Up to 160 Miles Per Charge
Battery: 2*48V 20Ah (960Wh) Battery w/ Samsung Lithium-Ion Cells
Charging Time: 8-10 Hrs; Rated For 1000-1500 Charge Cycles
Charger: 48V*2A 5 Pins, US Standard DC Charger, 5 Pins w/ Auto Magnetic Suction
Controller: Addmotor 25A Controller
Throttle: Right Hand Half Twist Throttle with Switch
Shifter: SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
CHASSIS
Tires: 24” x 4.0” Front & 20” x 4.0” Rear Fat Tires
Rims: Aluminum Double Wall’ 36H
Front Fork: Oil Spring Fork with 80mm of Travel
Brake: Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors: 180mm Front / 2*180mm Rear Rotors on 3 Wheels
Pedals: Wellgo Aluminum with Reflectors, Standard 9/16” x 20 TPI Threading
Pedal Assist: Intelligent 7 Level Pedal Assist, Upgraded Torque Sensor
Derailleur: SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Fenders: Aluminum Fenders, Front & Rear Included
Chain: KMC Rust Resistant Chain
Frame: 6061 Aluminum Alloy Frame
OTHER
Display: Addmotor EB 2.0 LCD Display
USB Port: Integrated in Display, 5V, 1Amp
Wiring: Water-Resistant Connectors and Wiring Harness
Handlebar: Black Aluminum, 725mm Wider Handlebar
Seat Post: Aluminum 270mm x 31.6mm
Seatpost Clamp: Quick Release
Saddle: Addmotor Exclusive Well-Padded Saddle with Backrest
Basket: Front - Removable, Aluminum; Rear - Removable, Aluminum, 100lbs Carrying Capacity
