2024 Argo Magnum XF 1000 LE
STANDARD FEATURES
997cc Liquid-Cooled 4-Stroke EFI Engine
Automatic CVT with Engine Braking
27" Tires with Aluminum Rims

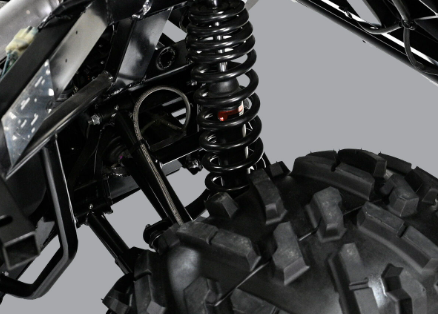

Front and Rear Independent Double A-Arm Suspension
Selectable Turf Mode/2WD/4WD/4WD Lock
Front and Rear Hydraulic Disc Brakes
2,500 lb. Towing Capacity with 2" Receiver
1,000 lb. Capacity Rear Cargo Box with Tilt-Assist Shock
Adjustable-Tilt Steering Wheel
Heavy-Duty Front Bumper
Storage: Dual Glove Box, Dash, Arm Rest, Under Seat
Tri-Mode Electric Power Steering (EPS)
4,500 lb. Winch
Premium Painted Plastic Body Panels
DIMENSIONS
Length: 122” (3100mm)
Width: 64” (1625mm)
Height: 78.7” (2000mm)
Seat Height: 37.3” (946mm)
Ground Clearance: 14.2” (360mm)
Wheelbase: 83.5” (2120mm)
Towing Weight: 2500lbs (1134kg)
Dry Weight: 1642lbs (745kg)
Wet Weight: 1714lbs (778kg)
Fuel Tank Capacity: 11.09gal (42L)
Rider Capacity: 3
Rear Box Storage: 1000lbs (454kg)
Rear Box Dimensions: 42.5” x 63” x 12.6” (1080 x 1600 x 320mm)
ENGINE
Displacement: 997cc
Engine Stroke: 4-Stroke
Cylinder Arrangement: SOHC V-Twin Cylinder
Valve Configuration: 4 Valve
Fuel System: EFI
Cooling System: Liquid
Bore x Stroke: 92 x 75mm
Compression Ratio: 10.2.1
Start Method: Electric Start
Ignition: ECU
Transmission Type: CVT Automatic
Final Drive: Shaft Drive
Differential Function: Selectable Front & Rear
Drive System Type: Turf / Turf Assist / 2WD / 4WD / 4WD Lock
Electric Diff Lock: Yes
Gear Selection: H/L/N/R/P
Engine Braking System(EBS): Standard
Electric Power Steering: Tri-Mode EPS
CHASSIS
Front Tire: 27 x 9 - 14
Rear Tire: 27 x 11 - 14
Wheel Rim: Aluminum
Brakes: Hydraulic Disc
Foot Brake: 4-Wheel Hydraulic Disc Brake
Suspension: Independent Double A-Arm
Front Suspension Travel: 11” (27.9cm)
Rear Suspension Travel: 11” (27.9cm) w/ Sway Bar
OTHER
Front Bumper: HD Standard
Cargo Box Lift: Manual with Shock Assist
Hitch: Standard / 2” Receiver
Winch: 4500lb with Synthetic Rope
Skid Plate: Plastic
Storage: Dual Glove Box, Dash, Arm Rest, Underseat
Charging: DC 12V 20A(1), USB Port(1), Battery Trickle Charging Outlet(1)
Lighting: Dual LED High/Low Beam / LED Tail Light
Instrumentation: Digital Instrument Panel with Odometer, Speedmeter, Tripmeter, RPM, Transmission Position, 2WD/4WD/Lock Indicator, APS Indicator, Gear Indicator, Fuel Gauge, Temperature, Low Battery, Low Oil, High Beam Light, Seat Belt Indicator, and Check Engine Lights
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
